Passionate About Tandem

  Ross Systems International Limited

                    Tandem/HP NonStopTM Development & Test Solutions




RSI LICENSE

RSI License is for you if:

bullet

You have HP NonStop products

bullet

You want to protect them from unlicensed use

bullet

You do not have the time or cryptographic know how to protect them

SUMMARY.

The RSI LICENSE Product is a set of HP NonStopTM programs and libraries that provide a simple, easy to use, flexible and effective method of setting up a program licensing environment, enabling program licensing control, issuing licenses, in  the form of encrypted files, and maintaining those licenses over multiple HP NonStop Systems over time.

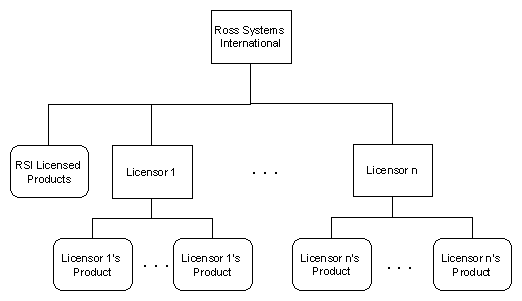

RSI LICENSE is designed as a hierarchical licensing system in which Ross Systems International can grant licenses to licensors who can then grant licenses to their product users.

It is designed in such a way that no licensor can grant licenses for any other licensors product including Ross Systems International. This is achieved by a combination of a secret key / password system both components of which are only known to the licensor. Since after licensing a licensor the first action of the licensor will be to change the password.

CAPABILITIES

RSI LICENSE enables its users to:

bullet

Issue User Licenses for a Product by:
a)   Product Type
b)   System Name
c)   System Number
d)   CPU Type
e)   CPU Count
f)    License Period

bullet

Control Product behaviour on License Infringement over the range of:
a)   Disable Product
b)   Warn of Infringement and Lockout after a maximum number of infringements.
c)   Warn of Infringement No Lockout.

bullet

Maintain Licensed set of products, i.e. Add or remove products and product descriptions.

bullet

View licenses and maintain license files including the ability to set run times and week-days.

BENEFITS

bullet

 The licenses issued are very secure.

bullet

It is very easy to modify the licensing system for a new program or program group

bullet

Licensing Libraries exist for C, C++, TAL, pTAL and COBOL programs.

bullet

It is very easy to add licensing to a program

bullet

You can wild card a program to operate with any of your licenses.

bullet

Issuing licenses with LICENSE is secure, simple and flexible.

bullet

Multiple Systems Can be licensed in one license file.

bullet

Optional wild cards in the license file enable you to determine how the licenses operate.

bullet

You can determine what happens when a license is infringed.

bullet

Infringement reporting on EMS log and home terminal.

bullet

It is very easy to maintain license files using the VIEWLICE utility

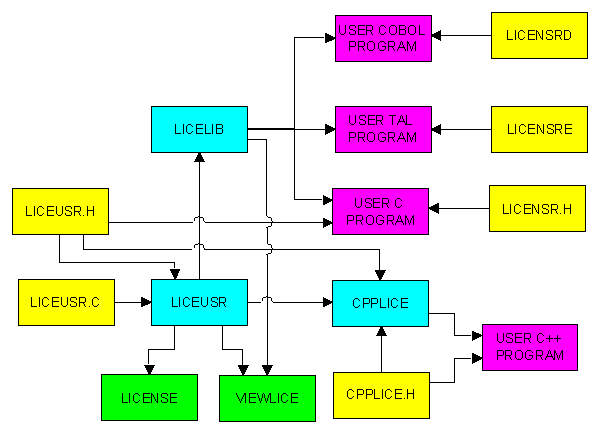

COMPONENTS

Colour     Description                             Components
Green      Licensing Programs              LICENSE, VIEWLICE
Blue        License Libraries                 LICEUSR, LICELIB, CPPLICE
Yellow     Source and header files        LICEUSR.H, LICEUSR.C, LICENSR.H,
                                                      LICENSRE, LICENSRD
Purple      Licensed User Programs       C++, COBOL and TAL

Descriptions:

1.      LICENSE              License Issuing Program

2.      VIEWLICE            License Viewer and User Maintenance Program

3.      LICEUSR              User License Library, contains product codes & other user dependant data

4.      LICELIB               License Library Routines

5.      CPPLICE              C++ Licensing Routines

6.      LICEUSR.C           Licensor User License Library Source

7.      LICEUSR.H           Licensor User License Library Header File

8.      LICENSR.H           C Licensing Routines Header File

9.      CPPLICE.H           C Licensing Routines Header File

10.  LICENSRE            TAL Licensing Routines External Reference File

11.  LICENSRD           COBOL Licensing Routines Include File

Note.   VIEWLICE is shared in common with several other Ross Systems International Products.
  A license to use VIEWLICE does not imply a license for the RSI LICENSE Suite.
BITUG Presentation 9th April 2008, Download
